3D printed bracket for Polemaster / Avalon Instruments M Zero

PoleMaster  bracket part deux.

This is an updated bracket to attach the PoleMaster polar alignment camera to the Avalon Instruments M Zero mount. The plan is to attach the 3D printed bracket to the bottom arm where the RA counter weights sit. Obviously this has to be done before any OTA and guide scope is mounted onto the M Zero.  At the moment the weather conspires against testing as it has been cloudy every night for the past 2 weeks. A basic design was made in CAD and then fabricated on the QIDI X-Plus printer using PLA plastic. After looking at the 3D print, I came up with a better design that uses less material.

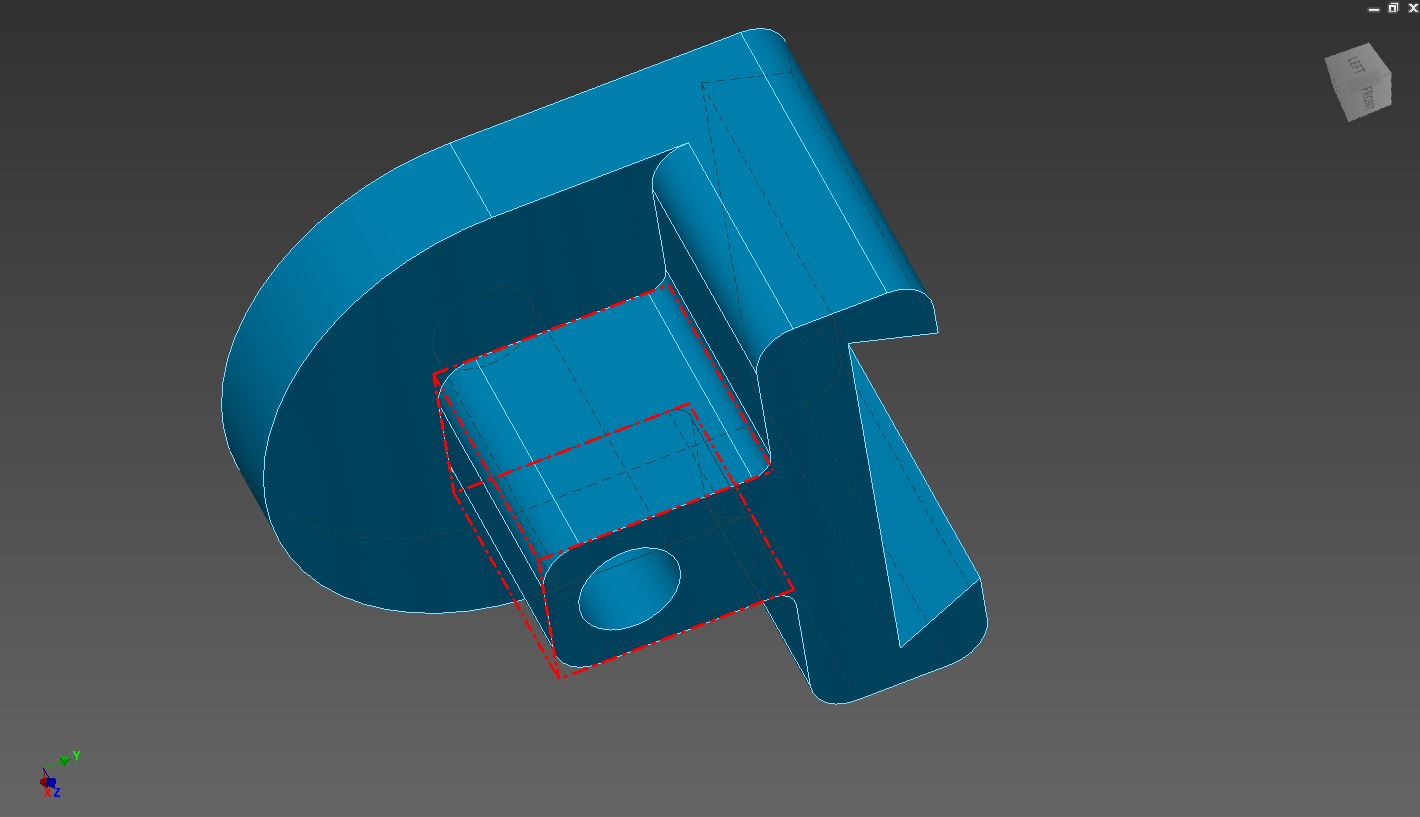

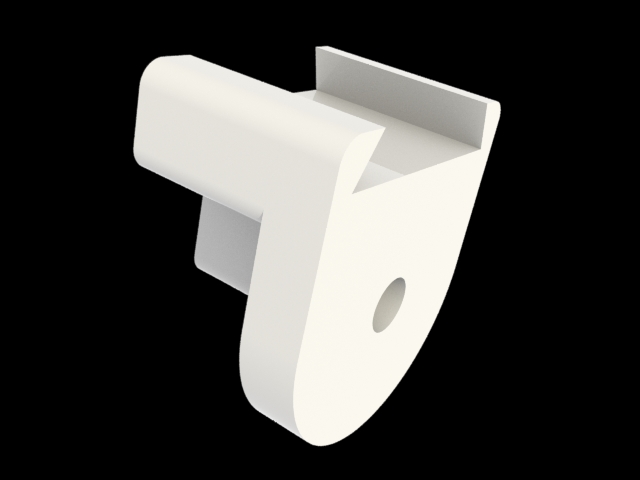

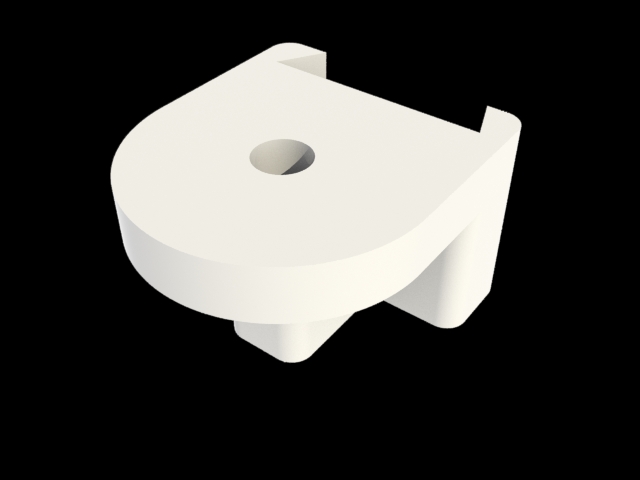

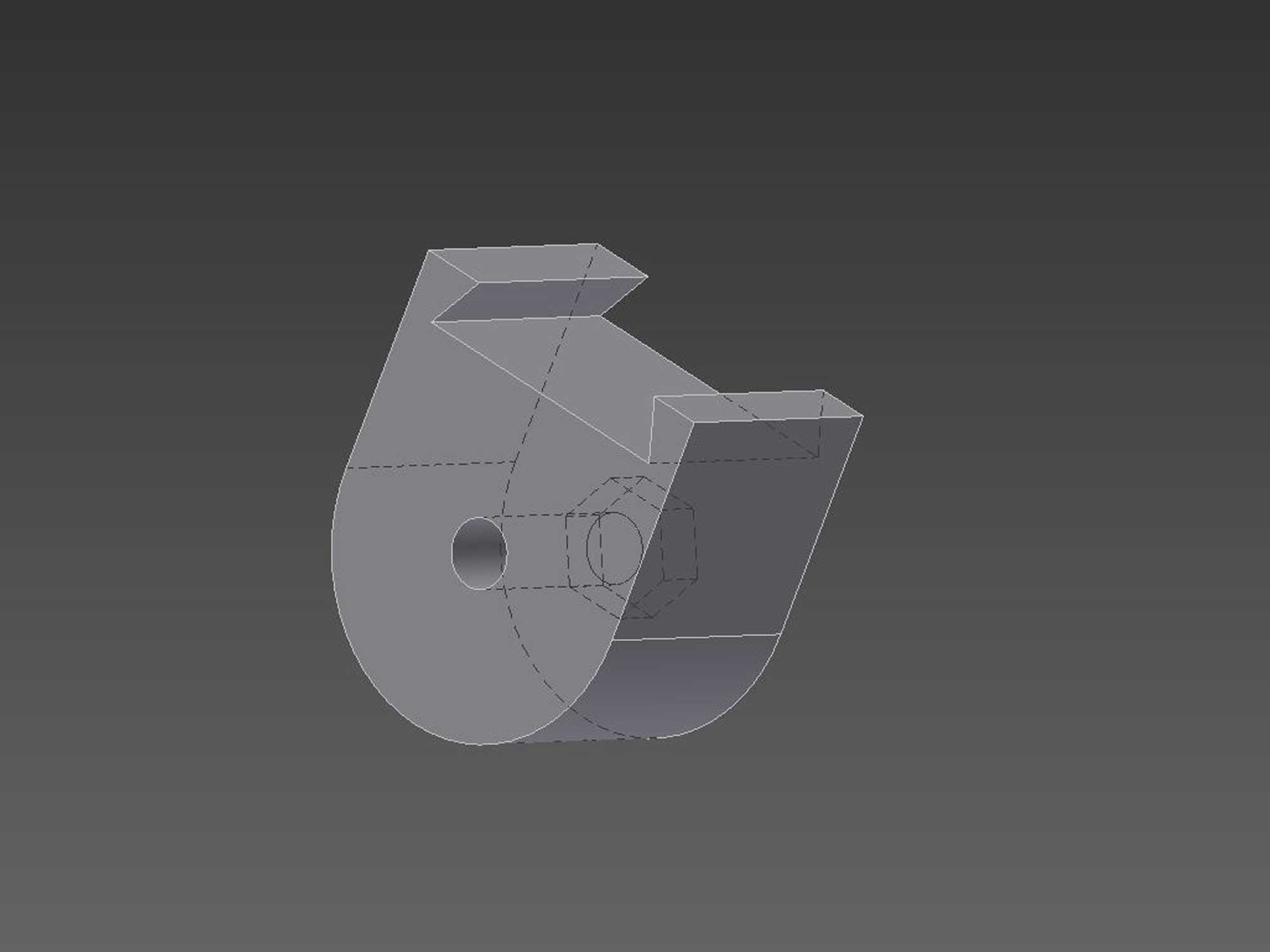

3D printed bracket polemaster to Avalon Instruments M Zero - CAD Software

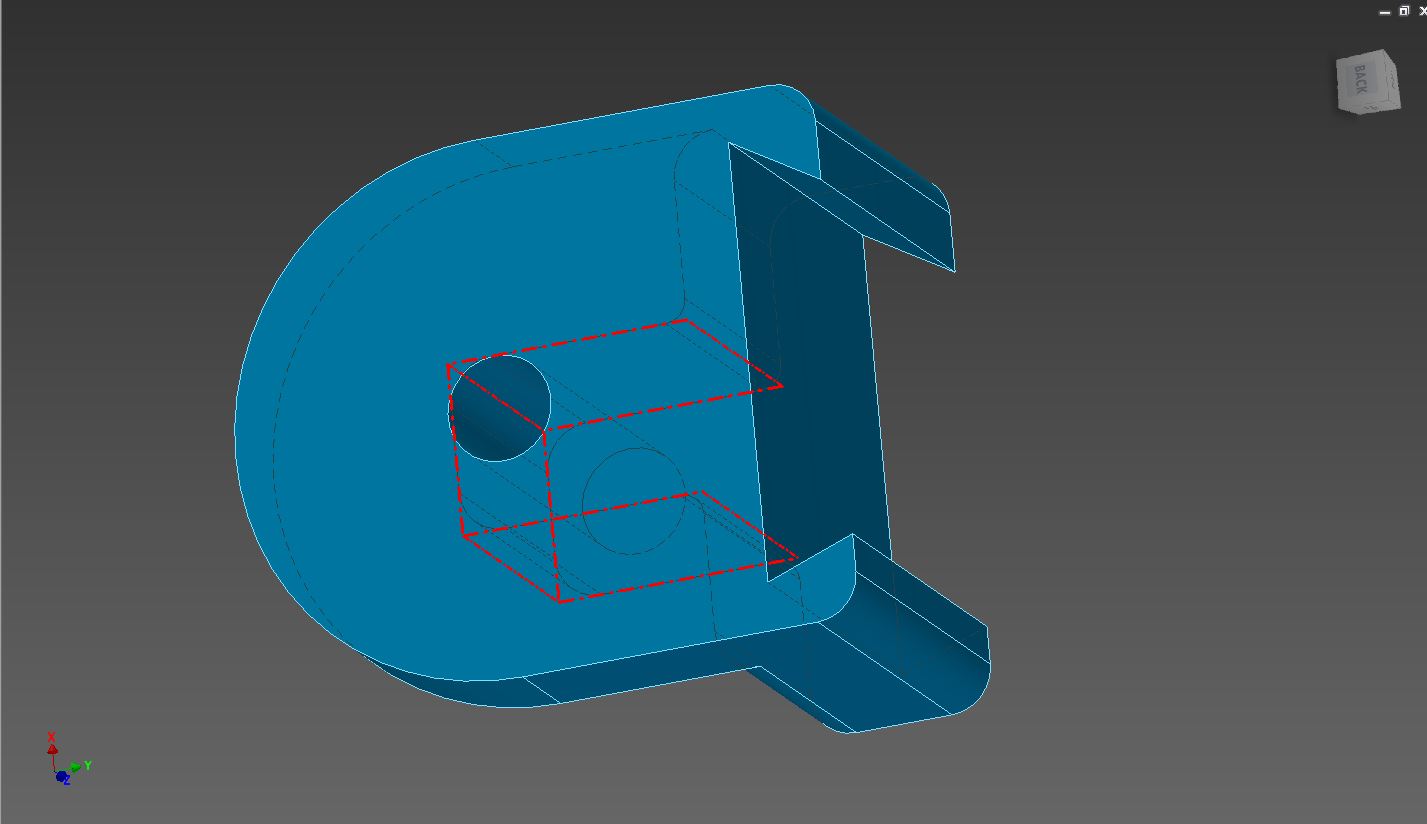

3D printed bracket Polemaster to Avalon Instruments M Zero – CAD Software
3D printed bracket polemaster to Avalon Instruments M Zero

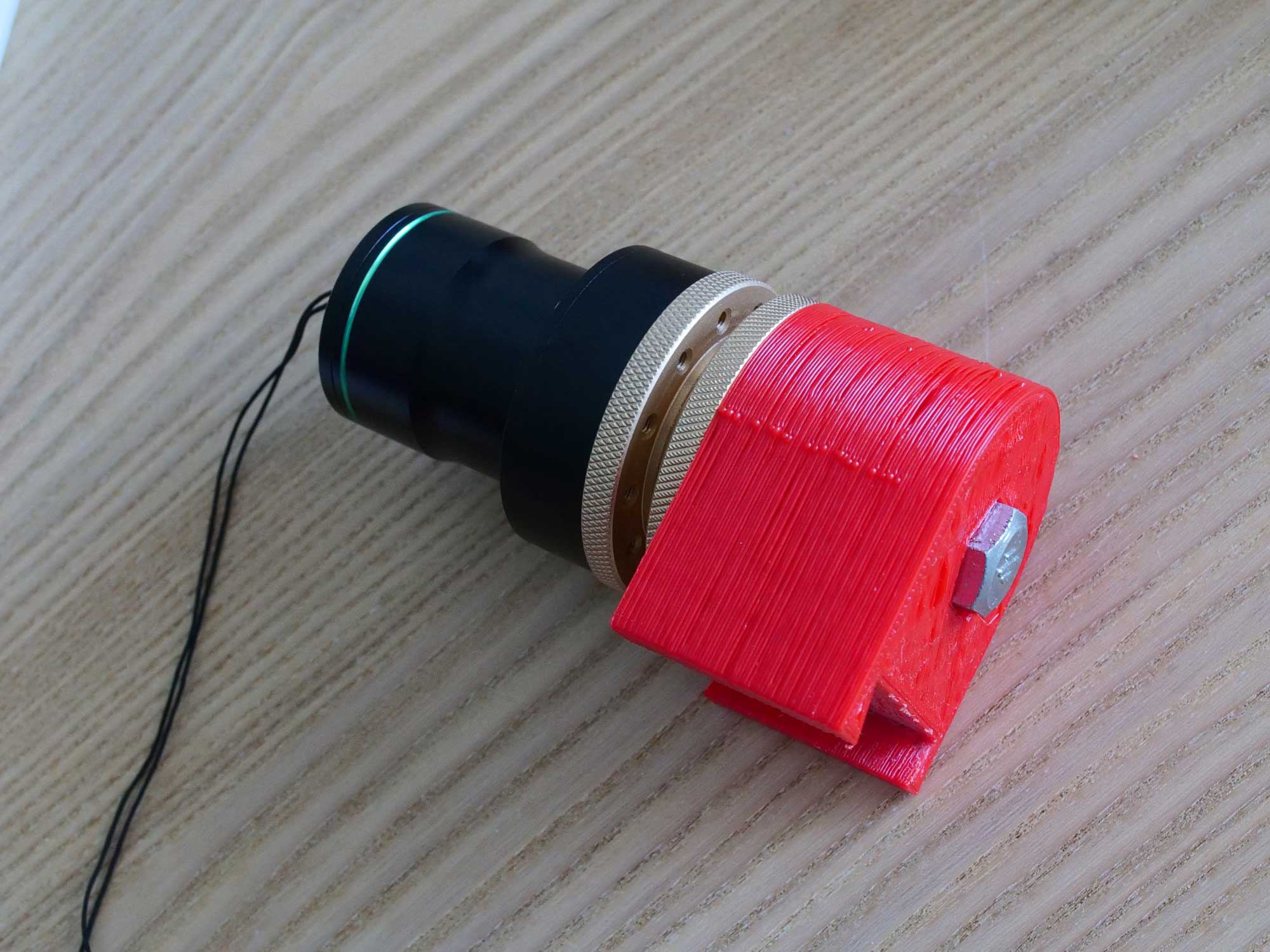

Polemaster attached to 3D printed bracket
3D printed bracket polemaster to Avalon Instruments M Zero

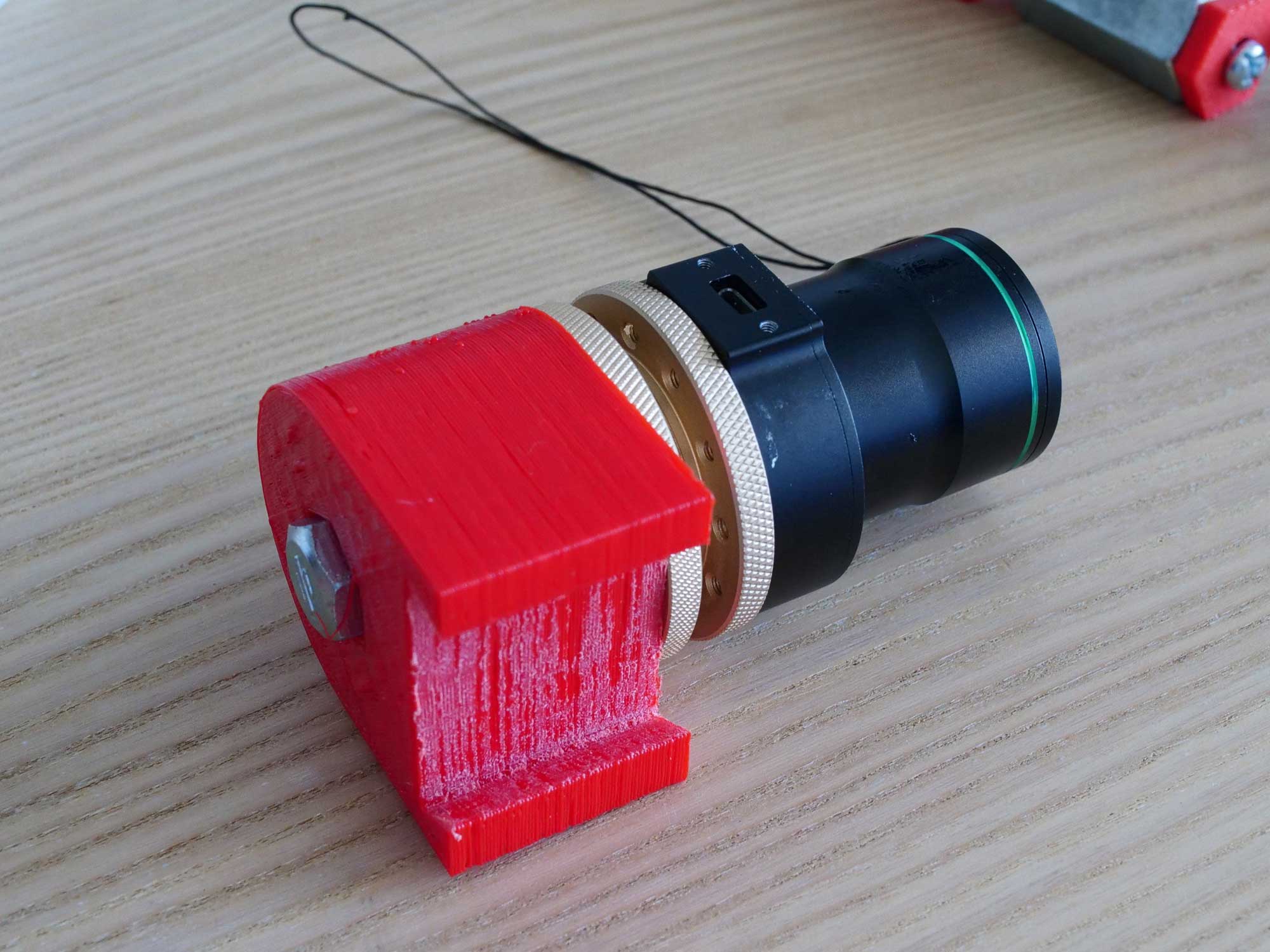

Polemaster attached to 3D printed bracket

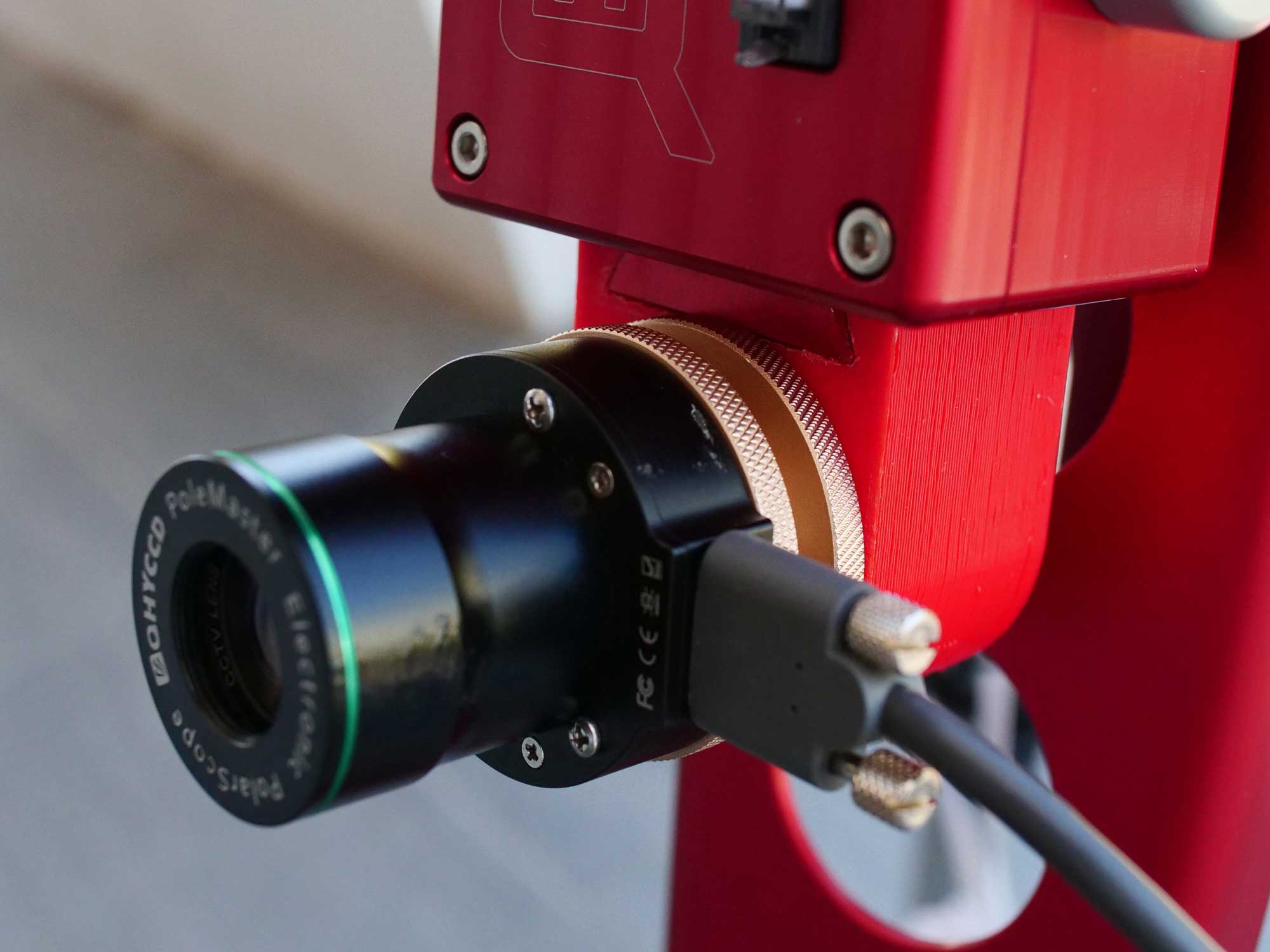

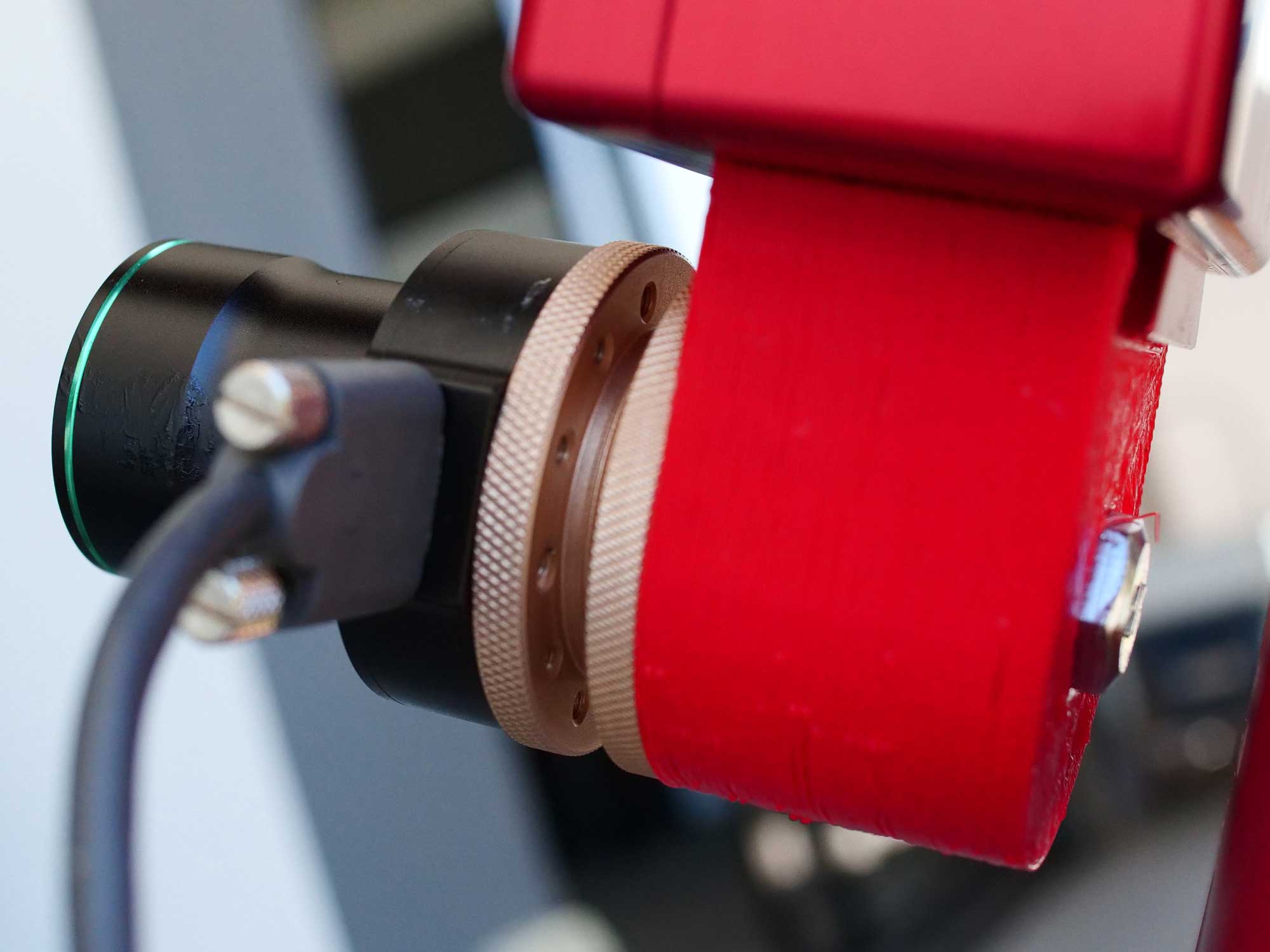

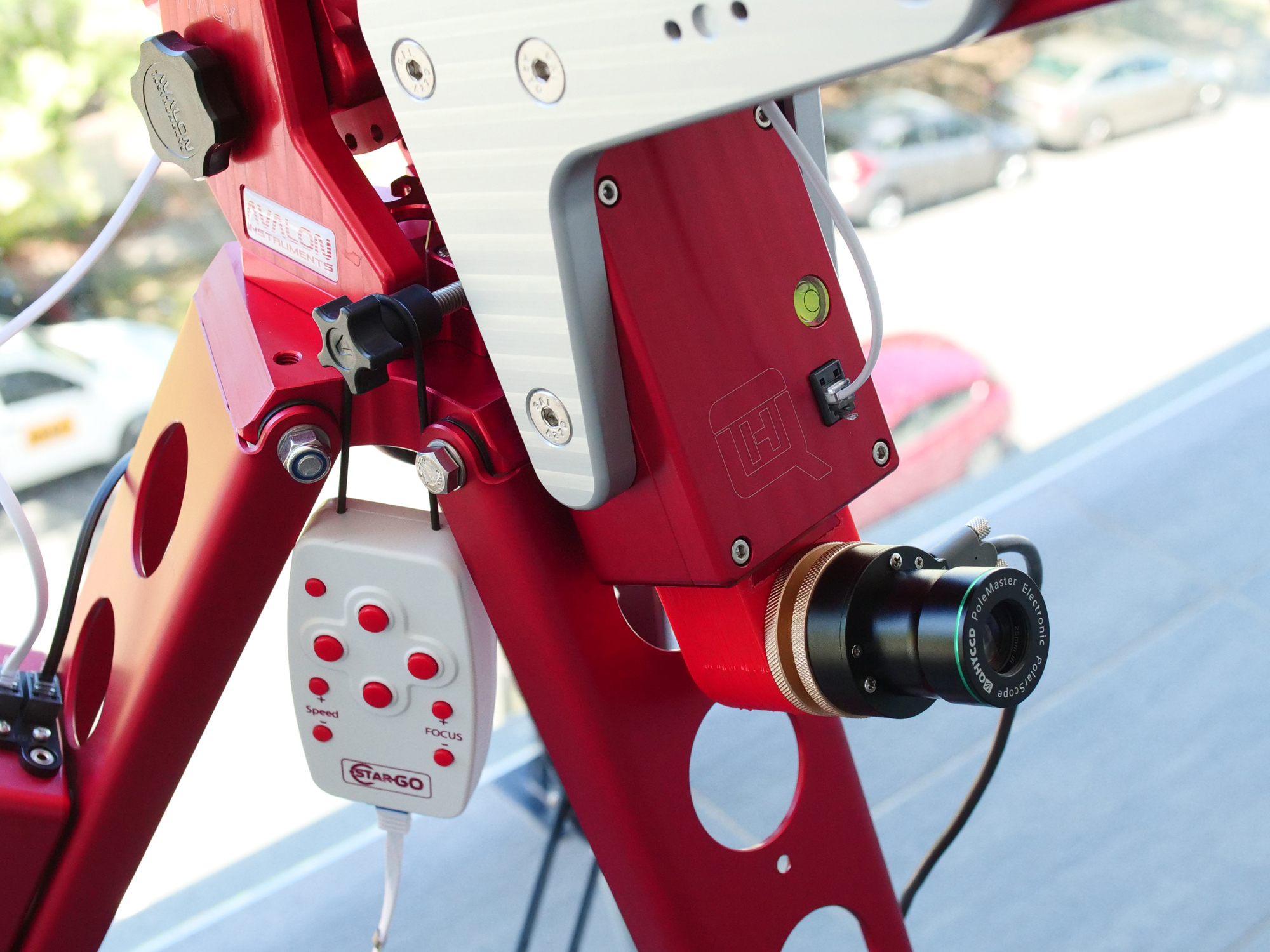

Polemaster and 3D printed bracket attached to the M Zero
Polemaster and 3D printed bracket attached to the M Zero
Polemaster and 3D printed bracket attached to the M Zero
Polemaster and 3D printed bracket attached to the M Zero

Polemaster and 3D printed bracket attached to the M Zero
Polemaster and 3D printed bracket attached to the M Zero


The next iteration in the Polemaster design uses less PLA print material and has a slightly more elegant appearance. If my original printed adapter ever gets lost or damaged, then this will be the replacement.
